Thông tin kỹ thuật của sản phẩm BackYard Automation BY-D1200
BY-D1200 industrial lifting column is specially adapted to Cobots, and the lifting height can be adjusted. It is used for
packaging and stacking, lifting with mobile cars, and scientific research institutes.
BY-D1200 lifting column, the available height is from 250-1200mm, the height from the base to the top can reach
2200mm at the highest lifting height. The software interface directly matches the UR robot and the communication
interface directly supports IO, Modbus TCP, etc.
| Technical data | Min | Max | Units |
| Total length | 250 | 2200 | [mm] |
| Total stroke (adjustable) | 200 | 1200 | [mm] |
| Repetition Accuracy | - | <±1 | [mm] |
| Driving force | - | 4000 | [N] |
| Structure | - | 3 | - |
| Operating voltage | 0 | 24 | [V DC] |
| Power consumption | - | 200 | [W] |
| Ambient operating temperature | 5 | 45 | [°C] |
| Typical Weight (Stroke 500mm, with controller)(500mm) | - | 16.5 | Kg |
| Interface | IO， Modbus TCP | ||
| Material Composition | Aluminum alloy | ||
| IP Class | IP 54 | ||
| Certificate | CE, RoHS | ||
| Flange Interface | Match Cobots : UR, Omron,TM， | ||
Application Scenarios
The BY-D1200 series lifting column is directly compatible with most collaborative robots on the market, such as UR,
Aubo, Jeka, Alite,Yuejiang,etc. (ranked in no particular order), and the communication interface and flange are directly
matched, without the need for customized design of mechanical arm installation flanges by customers.

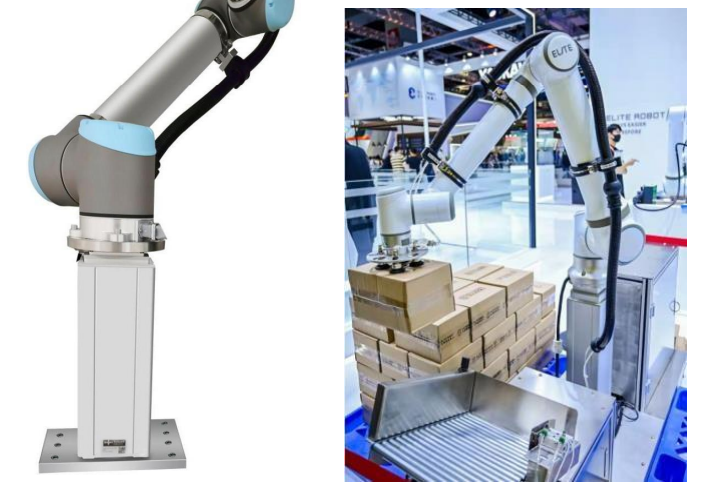

Typical applications cover when lifting column will drive Cobots to move up and down, such as palatalization and
mobile robots with lifting functions.

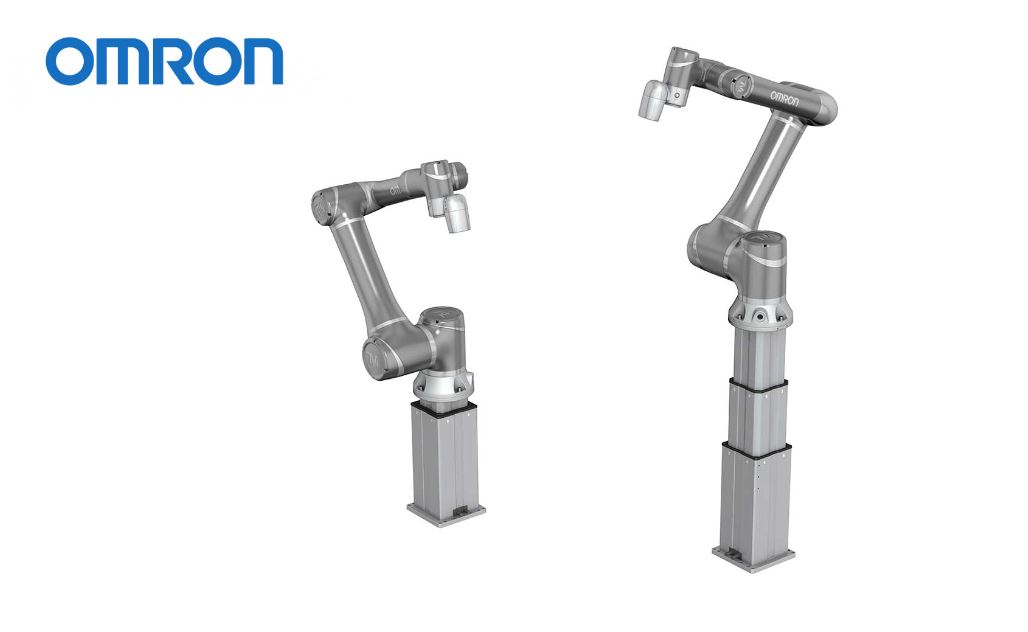

Trục Nâng Hạ số 7 Dành do Omron Cobot TM
![]()
Trục Nâng Hạ số 7 Dành do UR Cobot

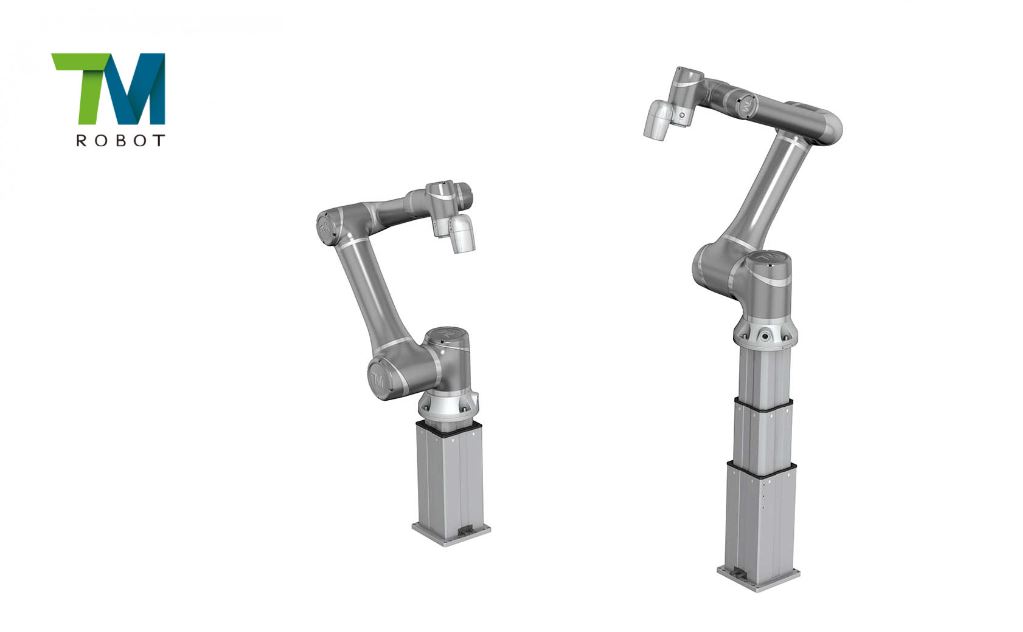

Trục Nâng Hạ số 7 Dành do Techman Cobot
